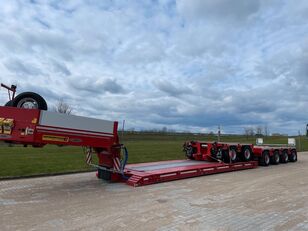

GVN TRAILER GVN3 56Ton with hydraulick ramps low bed semi-trailer

Er til salg: Til salg nu
GVN Trailer GVN3 56Ton with hydraulick ramps. It is brand new and has never been registered yet
and original COC document included
The factory writes that it has the following specifications
platform height(Unloaded) : 8500 mm
Loading platform lenght : 9800 mm included beaver tail
Total length : 13800 mm
Total width : 2550 mm + 2x6 sides extensions flags 300+300
Length of the rear ramp : 3000 mm
Width of the rear ramp : 750 mm
Axles group technical capacity : 36000 Kg
King pin technical capacity : 20000 Kg
Gross vehicle weight : 56000 Kg
Empty weight : 10.500 Kg
Permissible Payload : 45500 Kg
Technically Payload : 56000 Kg
Chassis Heavy duty and extra durability designed I beam
Opting for high tensile steel ST 52.3 A welded by automatic Submerged-Arc processes.Main chassis;Top Flange 20mm,width 150mm
Middle Flange 10mm,Height 500mm
Botton Flange 20mm,width 150mm.Travers are 200 mm and 160 mm height NPI.Side chassis
300 mm UPE
Suspensions Air suspensions
Brake System Two line air brake system acting on all wheels
Brake Chambers 2 Axles with T 30/30 emergency brake chamber,2 axles with T 30 service brake chambers
Electrical system 2x6 pin sockets - 24V
lights accord to standard in SAE rear stop lamps
side marker lamps
brake safety warning lamps and signal light fitted at the rear
2 tail & stop combined lamps (red)
2 turn signal combined lamps (orange)
1 license lamp (white)
Tires 235x70x17.5 - 245x70x17.5
Landing Gear Front: Jack feet are telescopic,parallel working,double speed jointed with wide shoes static 50 tons
Rear Ramp Hydraulic operated rear ramps with Electro pump for rear ramps hydraulic funsion with cable push – button for remote cont.Rear ramps length 3000 mm width 750 mm
Accessories
2 x 6 bolt type lashing rings
2 x 6 sides extensions flags 300 mm + 300 mm
1 x tool box(under the goose neck)
2 x tool box
left and right
The trailer is located in Denmark and we are happy to drive it to port
or you can pick it up from us and have it loaded with tractors or contractor machines
It is in stock for immediate delivery
We are happy to send you a lot of photos or video of it on watsApp
so feel free to contact us there on watsapp number + 45-40785296
